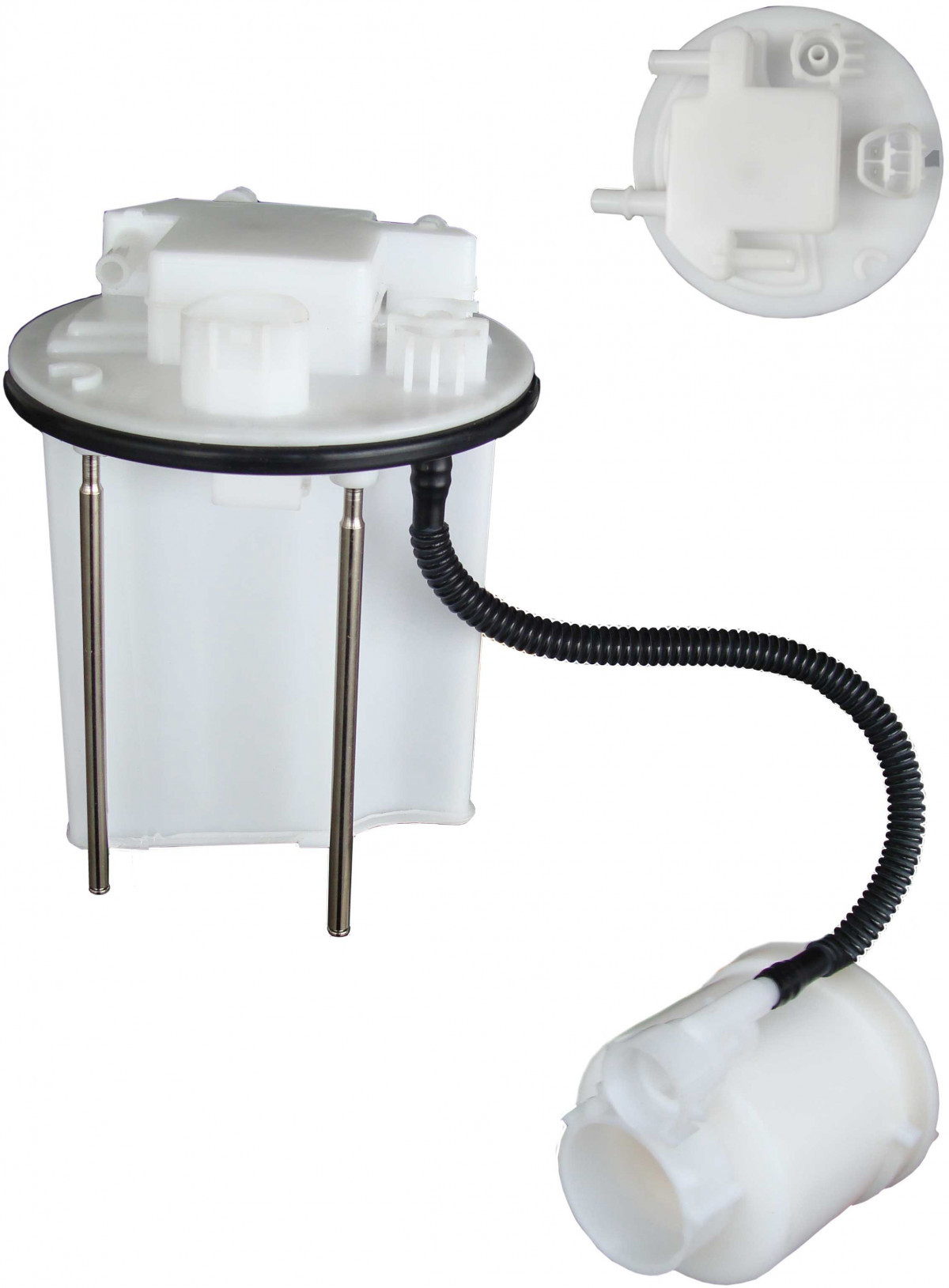

FUEL FILTER (IN-TANK) » FS21005

Feedback informationNEW!

Specification

Length 1/ Length 2
180
Outer Diameter 1/ Outer Diameter 2
132
Diameter 1/ Diameter 2 [mm]
44
Notes
TOYOTA/LEXUS

Cross reference

TOYOTA
77024-0R010
TOYOTA
77024-42060
TOYOTA
77024-42061
TOYOTA
77024-42070
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

TOYOTA   »   Corolla Axio

04.12~ 1800 2ZR-FAE ZRE162 OE117J A1013 FS21005FS6313A AC108J JT494K

TOYOTA   »   RAV 4

11.05~12.12 2000 1AZ-FE ACA30L C113J A1015 FS6313AFS21005 AC108J JT426K
11.05~ 2000 1AZ-FE ACA30R C113J A1015 FS6313AFS21005 AC108J
01.07~12.08 2400 2AZ-FE ACA31L C113J A1015 FS6313AFS21005 AC108J JT426K
11.04~ 2400 2AZ-FE ACA31W C113J A1015 FS21002FS6313API1008FS21005 AC108J JT426KJT21004JT29001K
11.05~12.12 2400 2AZ-FE ACA33R C113J A1015 FS6313AFS21002FS21005 AC108J JT426K
11.05~11.13 2400 2AZ-FE ACA33W C113J A1015 FS21002FS21005FS6313A AC108J JT426K
11.05~12.12 2400 2AZ-FE ACA36W C113J A1015 FS21005FS6313AFS21002 AC108J JT485KJT29001K
01.08~01.13 2500 2AR-FE ASA33L OE118J A1015 PI1008FS21005FS6313A AC108J JT426K
01.05~01.13 2500 2AR-FE ASA38L OE118J A1015 FS21005FS6313API1008 AC108J JT426K
12.12~10.15 2500 2AR-FE ASA42L OE118J A1521 FS6313AFS21005 AC108C JT21001K
12.12~12.18 2500 2AR-FE ASA44L OE118J A1521 FS6313AFS21005PI1008 AC108C JT21001K
08.07~08.08 3500 2GR-FE GSA33R OE118J A1015 FS6313AFS21005PI1011 AC108J JT422K

TOYOTA   »   Vanguard

08.07~01.13 2400 2AZ-FE ACA33W C113J A1015 FS21005FS6313A AC108J JT29001K
08.07~12.09 2400 2AZ-FE ACA38W C113J A1015 FS21005FS6313API1008 AC108J JT485K
08.07~12.09 3500 2GR-FE GSA33W OE118J A1015 PI1011FS21005FS6313A AC108J JT422K

Exemption from liability: the catalog data is advisory and can be used for reference only
