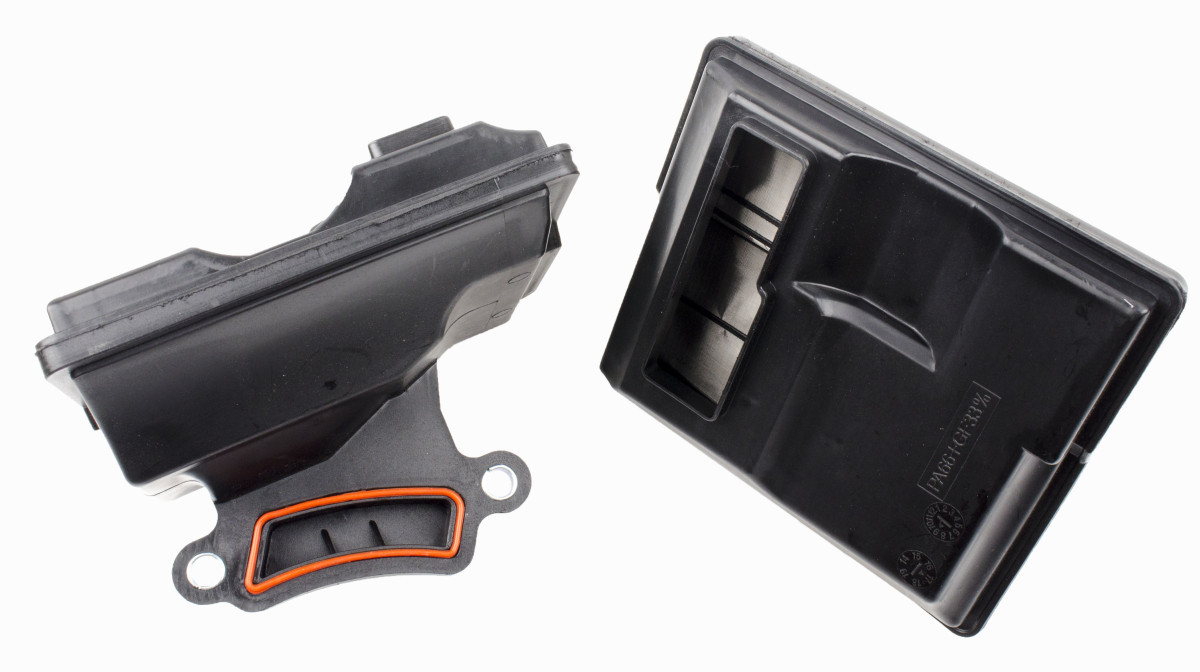

TRANSMISSION FILTER » JT254K

Feedback informationNEW!

Specification

Size A
130
Size B
115
Structure Material
PA66+GF33
Height (mm)
90.5
Transission Numers
AWTF-80SC, AWTF-81SC , AF40, AF4
Notes
AWTF-80SC, AWTF-81SC (AF40, AF4)

Variation

JT254F[JS]

Cross reference

JS
JT254
MAZDA
AW01-21-500
MAZDA
AWA0-21-500
Years Eng Vol Eng No Body No Oil Air Fuel Cabin Trans

FORD   »   Mondeo

09.07~12.14 2300 C23HDEX CA2 C114JOE406J A0450   AC0111CAC0111 JT254KJT517

MAZDA   »   CX-7

02.06~01.15 2300 L3-VDT AUES01 C114JOE406J A474J FR1012PI1006FS2504 AC401J JT254K
01.06~01.15 2300 L3-VDT EG52 C114JOE406J A474J FR1012PI1006FS2504 AC401J JT254K
01.08~01.15 2300 L3-VDT EH67 C114J A474J FR1012PI1006FS2504 AC401J JT254K
01.07~01.15 2300 L3-VDT ER3P C114JOE406J A474J FS2504 AC401J JT254K
04.09~01.15 2500 L5-VE ER C114J A474J FS2505 AC401J JT254K

MAZDA   »   CX-9

10.06~12.15 3500 CYC4 TB C0064 A25006 FR1012   JT254K
10.06~12.15 3700 CAY TB C0064 A25006 FR1012   JT254K

MAZDA   »   Mazda 6

01.02~01.08 3000 AJ GG C417J A474J FS800M AC401J JT254KJT132K

MAZDA   »   MPV

01.06~ 2300 L3-VE LY3P OE406J A474J FS2514 AC403J JT318KJT317KJT254K

Exemption from liability: the catalog data is advisory and can be used for reference only.
