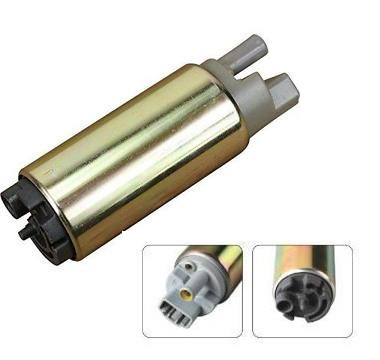

IN-TANK FUEL PUMP » PI1003

Feedback information

Specification

Length 1/ Length 2
123
Diameter 1[mm]
38
Diameter 2[mm]
32
Contact Group(mm)
2x3mm
Pressure [Bar]
3.1
Flow [L/h]
110

Cross reference

TOYOTA
23221-46070
TOYOTA
23221-50090
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

TOYOTA   »   Aristo

10.91~08.97 3000 2JZ-G#E JZS147 C111T A180J FS6042FR1022PI1002PI1003   JT419K
10.91~08.97 3000 2JZ-GTE JZS147 C111T A180J PI1003FS6042
10.92~08.97 4000 1UZ-FE UZS143 C114T A180J FS6042PI1003

TOYOTA   »   Brevis

05.01~06.07 2500 1JZ-FSE JCG10 C111T A192J FS6300PI1003 AC104J JT428K
01.01~06.07 2500 1JZ-FSE JCG15 C111T A192J FS6300PI1003 AC104J JT535K
05.01~06.07 3000 2JZ-FSE JCG11 C111T A192J PI1003FS6300 AC104J JT428K

TOYOTA   »   Chaser

09.96~07.01 2500 1JZ-GTE JZX100 (TOURER V) C111T A173J PI1003FS6042FR1022 AC21001SET JT420K
09.96~07.01 3000 2JZ-GE JZX101 C111T A189J FS6042FR1021PI1003 AC21001SET JT419K
10.93~09.96 3000 2JZ-GE JZX91 C111T A173J FR1022PI1003FS6042   JT429K

TOYOTA   »   Cresta

09.96~07.01 2500 1JZ-GTE JZX100 C111T A173J FR1022PI1003FS6042 AC21001SET JT420K
10.92~09.96 2500 1JZ-GTE JZX90 C111T A173J FR1022PI1003PI1002FS6042 AC21001SET JT429K
09.96~07.01 3000 2JZ-GE JZX101 C111T A189J PI1003FS6042FR1021 AC21001SET JT419K

TOYOTA   »   Crown Majesta

09.99~12.03 3000 2JZ-FSE JZS175 C111T A192J FR1007FS6300PI1003PI1002 AC106J JT428K

TOYOTA   »   Mark II

10.00~11.04 2500 1JZ-FSE JZX110 C111T A192J PI1003FS6300FR1007   JT428KJT436K
09.96~07.01 2500 1JZ-GE JZX100 C111T A173JA189J FS6042FR21001FR1007PI1003PI1001 AC21001SET JT419K
09.96~07.01 3000 2JZ-GE JZX101 C111T A189J FR1021PI1003FS6042 AC21001SET JT419K

TOYOTA   »   Mark II Wagon Blit

01.00~06.07 2500 1JZ-##E JZX110 C111T A192J FR1007PI1003FS6300 AC106JAC104J JT436K

TOYOTA   »   Supra

05.93~08.02 3000 2JZ-GE JZA80 C111T A173J FR1007PI1003FS3060FS3209U   JT429K

Exemption from liability: the catalog data is advisory and can be used for reference only
