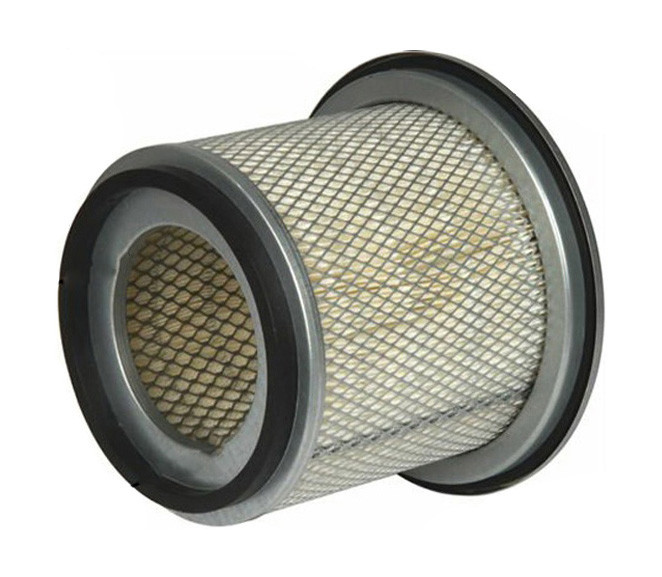

AIR FILTER » A2503

Feedback information

Specification

Height 1 (mm)
200
External Diameter 1
252
Internal Diameter 1
117
Mount Hole Diameter
23/14
Height 2 (mm)
187

Cross reference

NISSAN
16546-VB000
NISSAN
16546-VB600
NISSAN
16546-VB700
NISSAN
A6546-VB0X0
NISSAN
AY120NS043
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

ISUZU   »   Journey

09.07~ 4500 TB45E4 SDCW41 C225J A2503 FS309J
09.07~ 4500 TB45E4 SDHW41 C225J A2503 FS309J
09.07~ 4500 TB45E4 SDJW41 C225J A2503 FS309J
09.07~ 4500 TB45E4 SDVW41 C225J A2503 FS309J

NISSAN   »   Civilian

09.04~ 4500 TB45E DCW41 C225J A2503 FS309J
09.04~ 4500 TB45E DHW41 C225J A2503 FS309J   JT255K3
09.04~ 4500 TB45E DJW41 C225J A2503 FS309J
09.04~ 4500 TB45E DVW41 C225J A2503 FS309J
08.04~ 4500 TB45E W41 GL C225J A2503 FS309J

NISSAN   »   Patrol

08.97~06.11 4500 TB45E Y61 C225J A2503 FS309J
05.01~ 4800 TB48DE Y61 C225J A2503 FS309J

NISSAN   »   Safari

04.04~12.12 4500 TB45# TY61 C225J A2503 FS309J
10.97~11.02 4500 TB45E WGY61 C225J A2503 FS309J   JT255K3
12.12~ 4800 TB48DE TY61 C225J A2503
11.02~07.07 4800 TB48DE WFGY61 C225J A2503 PI1012FS309J AC2519SET
05.01~ 4800 TB48DE Y61 C225J A2503 FS309JPI1012 AC2502SETAC2503SET
12.16~ 4800 TB48E GCY61 GL C225J A2503 FS309J

Exemption from liability: the catalog data is advisory and can be used for reference only
