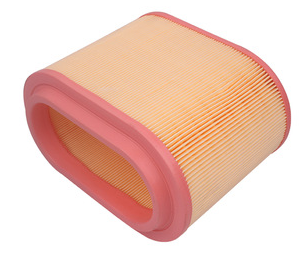

AIR FILTER » A9307

Feedback information

Specification

Height 1 (mm)
193
Internal Diameter 1
228
Length(mm)
228
Width 1 (mm)
128
Internal Diameter 2
72
External Diameter 1
172

Cross reference

HYUNDAI
28113-4A001
HYUNDAI
28130-4A001
HYUNDAI / KIA
281304A001
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   H1 Pick-up Libero

10.06~12.07 2500 4D56 SR C109J A9307
01.00~11.06 2500 D4BH (4D56) HB C109J A9307 SF1102FC321J

HYUNDAI   »   H1 Starex

05.97~09.04 2500 D4BF / 4D56T A1 C109J A9307 SF1101FC321J AC9303
05.97~09.04 2500 D4BH (4D56) WGN SHORT 7 C109J A9307 SF1101FC321J AC9303
09.04~05.07 2500 D4CB A1 WAGON LONG - 12P C109J A9307 FC9303 AC9303 JT436K
06.00~09.04 2500 D4CB A1 WAGON SHORT - 9P C109J A9307 FC9301   JT436K

HYUNDAI   »   H200

07.00~ 2500 D4BA / 4D56 FFA C306J A9307 FC321J
05.97~ 2500 D4BF / 4D56T FFA C109J A9307 FC321J
01.00~ 2500 D4BH (4D56) FFA C109J A9307 FC321J
01.98~ 2600 D4BB FFA C306J A9307 FC321J

HYUNDAI   »   Satellite

07.94~06.02 2500 D4BF / 4D56T KMJ C109J A9307 FC321J
05.98~ 2500 D4BH (4D56) KMJ C306J A9307 FC321J

Exemption from liability: the catalog data is advisory and can be used for reference only
