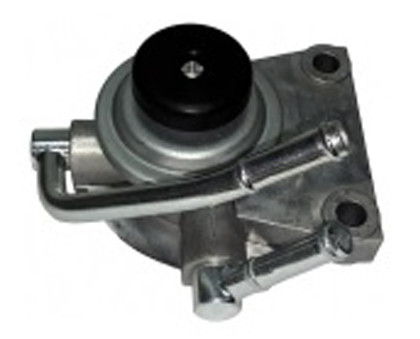

MANUAL DIESEL PUMP » PM1009

Feedback information

Specification

Thread
3/4x16 "
O-Ring gasket
50x72
Outer Diameter [mm]
10
Inner Diameter [mm]
10

Cross reference

TOYOTA
23301-56290
TOYOTA
23301-58190
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

TOYOTA   »   Dyna

08.88~05.95 3700 14B BU66DH     PM1009SF2101PM1010
10.89~05.95 3700 14B BU72 C115J A136J SF2101FC158JPM1009
10.89~05.95 3700 14B BU72D C115J A136J FC158JSF2101PM1009
10.89~05.95 3700 14B BU72DH C115J A136J FC158JSF2101PM1009
10.89~05.95 3700 14B BU73DH     SF2101PM1009
10.89~05.95 3700 14B BU73H     SF2101PM1009
10.89~05.95 3700 14B BU74 C115J A136J FC158JSF2101PM1009
01.88~12.95 3700 14B BU88 C115J A136J SF2101PM1009FC158J
08.88~05.95 3700 14B BU94 C115J A136J SF2101SF2102FC158JPM1009
08.88~05.95 3700 14B BU96 C115J A136J FC158JSF2102PM1009SF2101
05.95~05.99 4100 15B-F# BU212 C115J A147JA188J FC158JPM1009SF2101

TOYOTA   »   Dyna 200

01.95~12.03 3700 14B BU221 C101V A136J PM1009FC158H

TOYOTA   »   Dyna 200 / Toyoace G25

05.95~05.99 4100 15B-F BU202 C115J A147J FC158JPM1009SF2101
05.95~05.99 4100 15B-F# BU222 C115J A147JA188J SF2101PM1009FC158J

Exemption from liability: the catalog data is advisory and can be used for reference only
