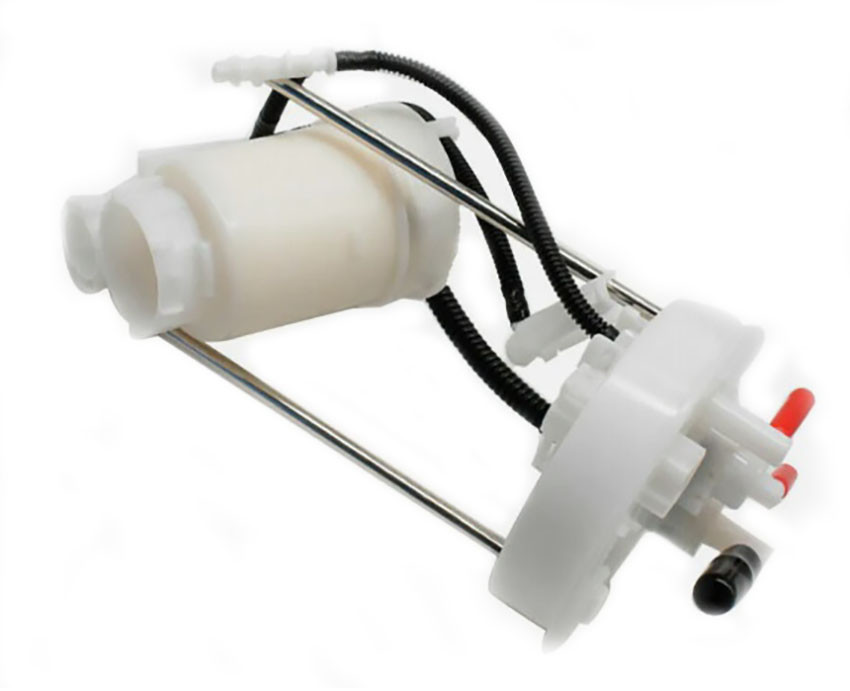

FUEL FILTER (IN-TANK) » FS7317
Feedback information
Specification
Length 1/ Length 2
230
Outer Diameter 1/ Outer Diameter 2
121
Cross reference
HONDA
17045-T5A-J50
HONDA
17048-T5A-000
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HONDA » Ballade
| 11.20~ | 1500 | LEBA | GN3 RHD KN S/AFR | C809J | A2834 | FS7317 | AC8503 | |
| 02.24~ | 1500 | LEBA | GN3 RHD KN S/AFR | C809J | A2834 | FS7317 | AC8503 |
HONDA » City
| 01.17~ | 1500 | LEB-H1 | GM7 MA RHD | C809J | A28013 | FS7317 | AC8503 | JT783 |
| 07.23~ | 1500 | LEB8 | GN3 RHD | C809J | A2834 | FS7317 | AC8503 |
HONDA » Fit
| 09.13~06.17 | 1300 | L13B | GK3 RHD | C809J | A28013 | FS7317 | AC8503C | JT565JT381K |
| 10.19~ | 1300 | L13B | GR1 | C809J | A28013 | FS7317 | AC8503 | JT565JT381K |
| 09.13~01.20 | 1500 | L15B | GK5 JPN | C809J | A28013 | FS7317 | AC8503AC8503C | JT565JT381K |
| 01.14~06.17 | 1500 | L15B | GK5 KP LHD | C809J | A28013 | FS7317 | AC8503 | JT381KJT565 |
| 10.19~ | 1500 | L15Z | GS4 RHD | C809J | A28013 | FS7317 | AC8503 | JT565JT381K |
| 10.19~ | 1500 | LEB | GR3 JPN | C809J | A2834 | FS7317 | AC8503 | |
| 10.19~ | 1500 | LEB | GR3 RHD | C809J | A2834 | FS7317 | AC8503 | |
| 10.19~ | 1500 | LEB | GR4 JPN | C809J | A2834 | FS7317 | AC8503 | |
| 10.19~ | 1500 | LEB | GR6 JPN | C809J | A2834 | FS7317 | AC8503 | |
| 10.19~ | 1500 | LEB | GR8 JPN | C809J | A2834 | FS7317 | AC8503 | |
| 09.13~01.20 | 1500 | LEB-H1 | GP5 | C809J | A28013 | FS7317 | AC8503C | JT783 |
HONDA » Grace
| 09.15~08.20 | 1500 | L15B | GM6 | C809J | A28013 | FS7317 | AC8503AC8503C | JT381KJT565 |
| 12.14~07.20 | 1500 | LEB-H1 | GM4 | C809J | A28013 | FS7317 | AC8503AC8503C | JT783 |
HONDA » HR-V
| 01.15~01.18 | 1500 | L15 | JHMRU1 RHD | C809J | A28013 | FS7317 | AC8503 | JT381KJT565 |
| 01.18~ | 1500 | L15 | JHMRU1 RHD | C809J | A28013 | FS7317 | AC8503 | JT565JT381K |
| 01.15~01.18 | 1500 | L15Z | RU1 RHD | C809J | A28013A8528 | FS7317 | AC8503AC8503C | JT381KJT565 |
| 01.18~08.21 | 1500 | L15Z | RU1 RHD | C809J | A8528 | FS7317 | AC8503 | JT381KJT565 |
HONDA » Jazz
| 01.14~02.20 | 1200 | L12B4 | GK7 RHD | C809J | A8528 | FS7317 | AC8503 | JT565JT381K |
| 12.14~09.17 | 1300 | L13B | GK3 | C809J | A28013 | FS7317 | AC8503C | JT565JT381K |
| 09.17~02.20 | 1300 | L13B | GK3 | C809J | A28013 | FS7317 | AC8503 | JT381KJT565 |
| 01.14~02.20 | 1300 | L13B | GK3 LHD | C809J | A28013 | FS7317 | AC8503 | JT381KJT565 |
| 01.14~ | 1500 | L15A | GK6 | C809J | A28013 | FS7317 | AC8503 | JT565 |
| 01.14~02.20 | 1500 | L15B | GK5 SG | C809J | A28013 | FS7317 | AC8503C | JT565 |
| 01.14~02.20 | 1500 | L15Z2 | GK5 GR | C809J | A8528 | FS7317 | AC8503 | JT565JT381K |
| 01.14~02.20 | 1500 | L15Z2 | MAKGK5 SA | C809J | A8528 | FS7317 | AC8503 | JT565JT381K |
| 01.15~ | 1500 | LEB-H1 | GP# | C809J | A28013 | FS7317 | AC8503 |
HONDA » Shuttle
HONDA » Vezel
| 03.13~03.21 | 1500 | L15B | RU1 | C809J | A28013 | FS7317 | AC8503C | JT383JT565 |
| 03.13~03.21 | 1500 | L15B | RU2 | C809J | A28013 | FS7317 | AC8503C | JT565 |
| 03.13~03.21 | 1500 | LEB-H1 | RU3 | C809J | A28013 | FS7317 | AC8503C | JT783 |
| 03.13~03.21 | 1500 | LEB-H1 | RU4 | C809J | A28013 | FS7317 | AC8503C | JT783 |
