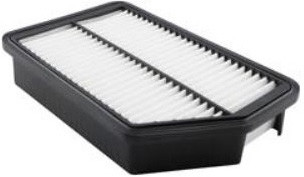

AIR FILTER » A9323
Feedback information
Specification
Length(mm)
256
Width 1 (mm)
165
Height 1 (mm)
54.5
Cross reference
HYUNDAI
28113-25000
HYUNDAI
28113-2S000
HYUNDAI
28113-3X000
HYUNDAI
28113-3Z100
HYUNDAI
28113-4V100
HYUNDAI
28113-A0100
HYUNDAI / KIA
28113-2S000
HYUNDAI / KIA
28113-3X000
HYUNDAI / KIA
28113A0100
HYUNDAI / KIA
S281133X000
KIA
28113-2S000
KIA
28113-3X000
KIA
28113-D8300
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HYUNDAI » Accent
HYUNDAI » Creta
| 12.19~01.24 | 1500 | G4FL | PFH20 GL | OE0152 | A9323 | FS9312 | AC9413 | JT622KJT712 |
| 12.19~01.24 | 1500 | G4FL | PFH20 RHD | OE0152 | A9323 | FS9312 | AC9413 | JT622KJT712 |
| 01.24~ | 1500 | G4FL | PFH24 LHD | OE0152 | A9323 | FS9312 | AC9413 | JT622KJT712 |
| 07.15~06.18 | 1600 | G4FG | PA016 LHD | C304J | A9323 | FS9312 | AC0222 | JT493 |
| 07.15~06.18 | 1600 | G4FG | PA016 RHD | C304J | A9323 | FS9312 | AC0222 | JT493 |
| 06.18~08.20 | 1600 | G4FG | PA018 LHD | C304J | A9323 | FS9312 | AC0222 | JT581 |
| 06.18~08.20 | 1600 | G4FG | PA018 RHD | C304J | A9323 | FS9312 | AC0222 | JT581 |
| 07.21~ | 1600 | G4FG | PFZ21 | C304J | A9323 | FS9312 | AC0239 | JT581 |
| 12.19~ | 2000 | G4NL | PFH20 LHD GRAND 7P | OE0160 | A9323 | FS9312 | AC9413 | JT581 |
| 09.23~ | 2000 | G4NL | PFH24 LHD GRAND 7P | OE0160 | A9323 | FS9312 | AC9413 | JT581 |
| 07.21~ | 2000 | G4NL | PFZ21 | OE0160 | A9323 | FS9312 | AC0239 | JT581 |
HYUNDAI » i40
| 01.18~ | 1600 | D4FE | PDF18 | OE0155 | A9323 | FC9303 | AC9312 | |
| 01.15~01.18 | 1600 | G4FD | PDF15 SDN LHD | C307J | A9323 | FR1012FS9317 | AC9312 | |
| 01.18~ | 1600 | G4FD | PDF18 | C307J | A9323 | FS11001 | AC9312 | |
| 02.11~09.17 | 1600 | G4FD | VF | C307J | A9323 | FS11001 | AC9312 | |
| 02.11~06.15 | 1700 | D4FD | DF | OE0073 | A9323 | FC9303 | AC9312 | JT493 |
| 02.11~06.15 | 1700 | D4FD | LC81 WGN LHD EU | OE0073 | A9323 | FC9303 | AC9312 | JT493 |
| 02.11~06.15 | 1700 | D4FD | LC81 WGN LHD KDOM | OE0073 | A9323 | FC9303 | AC9312 | JT493 |
| 01.15~01.18 | 1700 | D4FD | PDF15 SDN LHD | OE0073 | A9323 | FC9303 | AC9312 | |
| 01.15~01.18 | 1700 | D4FD | PDF15 SDN RHD | OE0073 | A9323 | FC9303 | AC9312 | |
| 02.11~06.15 | 2000 | G4NA | PDF12 SDN LHD | C304J | A9323 | FS11001PI1021FR1009FR1012 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NA | PDF12 WGN LHD | C304J | A9323 | FS11001PI1021FR1009FR1012 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NA | PDF12 WGN RHD | C304J | A9323 | FS11001PI1021FR1009FR1012 | AC9312 | JT493 |
| 01.15~01.18 | 2000 | G4NA | PDF15 SDN LHD | C304J | A9323 | FS11001PI1021FR1009FR1012 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NC | LB81 RHD AUS SDN | C304J | A9323 | FS11001FR1012 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NC | LC81 SG | C304J | A9323 | FS11001 | AC9312 | JT493 |
| 06.15~10.17 | 2000 | G4NC | LC81 SG WGN | C304J | A9323 | FS9317 | AC9312 | JT618 |
HYUNDAI » iX 35
| 01.14~06.15 | 1600 | G4FD | TMZ10 LHD | C307J | A9323 | FS11004 | AC9407C | JT493 |
| 11.10~12.15 | 1700 | D4FD | LM | OE0073 | A9323 | FC9304 | AC9407C | |
| 05.13~01.16 | 2000 | D4HA | PTM14 RHD | OE0076 | A9323 | FC9304 | AC9312 | |
| 10.09~08.13 | 2000 | D4HA | TM10 AUS | OE0076 | A9323 | FC9304 | AC9312 | JT11001 |
| 01.10~08.13 | 2000 | D4HA | TMZ10 LHD | OE0076 | A9323 | FC9304 | AC9407C | JT11001 |
| 07.13~06.15 | 2000 | D4HA | TMZ14 RUS | OE0076 | A9323 | AC9407C | ||
| 11.09~06.15 | 2000 | G4KD | LM | C304J | A9323 | FS9219 | AC9312 | JT493 |
| 11.09~08.13 | 2000 | G4KD | TM10 LHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 11.09~08.13 | 2000 | G4KD | TM10 RHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 08.09~09.13 | 2000 | G4KD | TMZ10 RUS | C304JC307J | A9323 | FS9219FS11004PI1023 | AC9407C | JT493 |
| 07.13~06.15 | 2000 | G4NA | TMZ14 RUS | C304J | A9323 | FS11004 | AC9407C | JT493 |
| 11.10~12.15 | 2400 | G4KE | LM | C304J | A9323 | FS9219 | AC9312AC9407C |
HYUNDAI » Tucson 10
| 10.09~08.13 | 2000 | D4HA | TM10 LHD | OE0076 | A9323 | FC9304 | AC9312 | JT11001 |
| 10.09~08.13 | 2000 | D4HA | TM10 RHD | OE0076 | A9323 | FC9304 | AC9312 | JT11001 |
| 11.09~08.13 | 2000 | G4KD | TM10 LHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 11.09~08.13 | 2000 | G4KD | TM10 RHD | C304J | A9323 | FS9219FS11004PI1023 | AC9312 | JT493JT11001 |
| 10.09~08.13 | 2400 | G4KE | TM10 LHD GL | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 10.09~08.13 | 2400 | G4KE | TM10 LHD US | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 10.09~08.13 | 2400 | G4KE | TM10 RHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
HYUNDAI » Tucson 14
| 08.13~05.15 | 2000 | D4HA | PTM14 LHD | OE0076 | A9323 | FC9304 | AC9312AC9407C | JT11001 |
| 08.13~06.15 | 2000 | G4NA | PTM14 LHD | C304J | A9323 | FS11004PI1023 | AC9312 | JT493 |
| 08.13~05.15 | 2000 | G4NA | PTM14 RHD | C304J | A9323 | FS11004PI1023 | AC9312 | JT493 |
| 08.13~06.15 | 2400 | G4KE | PTM14 LHD | C304J | A9323 | FS11004PI1023 | AC9312 | JT493 |
| 08.13~06.15 | 2400 | G4KE | PTM14 RHD | C304J | A9323 | FS11004PI1023 | AC9312 | JT493 |
| 08.13~06.15 | 2400 | G4KJ | PTM14 US | C304J | A9323 | FS11004 | AC9312 | JT493 |
KIA » Carens 12
| 01.13~09.16 | 1600 | G4FD | HT81 LHD | C307J | A9323 | FS9311 | AC0222 | |
| 01.13~09.16 | 1600 | G4FD | HU81 LHD 7P MES | C304J | A9323 | FS9311 | AC0222 | JT493 |
| 01.13~09.16 | 1600 | G4FD | HU81 RHD | C304J | A9323 | FS9311 | AC0222 | JT493 |
| 12.12~08.16 | 1700 | D4FD | WAGON - 5DR 7P | OE0073 | A9323 | FC9303 | AC0222 | JT493 |
| 12.12~08.16 | 2000 | G4NA | WGN 7P LHD PA412 | C304J | A9323 | FS9311 | AC0222 | JT493 |
| 01.13~09.16 | 2000 | G4NC | HU | C307J | A9323 | FS9311 | AC0222 | JT493 |
| 01.13~09.16 | 2000 | G4ND | RPA412 | C304J | A9323 | FS9311 | AC0222 | JT493 |
| 01.13~09.16 | 2000 | L4NA | DOMPA412 | C304J | A9323 | AC0222 | JT493 |
KIA » Carens 16
| 08.16~07.18 | 1600 | G4FD | PA416 | C307J | A9323 | FS9311FS9326 | AC0222 | |
| 08.16~07.18 | 1700 | D4FD | WAGON - 5DR 7P | OE0073 | A9323 | FC9303 | AC0222 | JT493 |
| 08.16~07.18 | 2000 | G4NC | PA416 | C307J | A9323 | FS9311FS9326 | AC0222 | JT493 |
KIA » Rondo
KIA » Seltos
| 08.19~07.23 | 1500 | G4FL | PTI20 RHD IND | OE0152 | A9323 | FS9312 | ||
| 07.23~ | 1500 | G4FL | PTI23 RHD IND | OE0152 | A9323 | FS9312 | ||
| 06.19~ | 1600 | G4FG | PTI20 LHD | C304J | A9323 | FS9312 | AC9413 | JT581 |
| 06.19~06.23 | 1600 | G4FG | PTI20 RHD | C304J | A9323 | FS9312 | AC9413 | JT581 |
KIA » Sportage
| 01.14~03.16 | 1700 | D4FD | SL | OE0073 | A9323 | FC9304 | AC9407C | |
| 08.10~04.14 | 1700 | D4FD | SLZ10 LHD | OE0073 | A9323 | FC9304 | AC9407C | |
| 08.10~04.14 | 2000 | D4HA | PSL10 LHD KDOM | OE0076 | A9323 | FC9304 | AC9312 | JT11001 |
| 09.09~04.14 | 2000 | D4HA | PSL10 RHD | OE0076 | A9323 | FC9304 | AC9312 | JT11001 |
| 08.10~04.14 | 2000 | D4HA | SLZ10 LHD | OE0076 | A9323 | FC9304 | AC9407C | JT11001 |
| 08.10~04.14 | 2000 | G4KD | PSL10 RHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 08.10~10.15 | 2000 | G4KD | SL10 LHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 06.10~04.14 | 2000 | G4KD | SLZ10 LHD | C307J | A9323 | FS11004 | AC9407C | JT493 |
| 08.10~04.14 | 2400 | G4KE | PSL10 LHD | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
| 08.10~04.14 | 2400 | G4KE | PSL10 US | C304J | A9323 | FS9219PI1023 | AC9312 | JT493 |
KIA » Sportage 14
| 01.14~03.16 | 2000 | D4HA | SL14 | OE0076 | A9323 | FC9304 | AC9312 | JT11001 |
| 01.14~03.16 | 2000 | D4HA | SLZ14 EL | OE0076 | A9323 | FC9304 | AC9407C | JT11001 |
| 01.14~03.16 | 2000 | D4HA | SLZ14 ER | OE0076 | A9323 | FC9304 | AC9407C | JT11001 |
| 01.14~03.16 | 2000 | D4HA | SLZ14 GL | OE0076 | A9323 | FC9304 | AC9407C | JT11001 |
| 01.14~03.16 | 2000 | G4NA | PSL14 RHD | C304J | A9323 | FS11004PI1023 | AC9312 | JT493 |
| 01.14~03.16 | 2000 | G4NA | SLZ14 MES | C304J | A9323 | FS11004PI1023 | AC9407C | JT493 |
| 01.14~03.16 | 2000 | G4NA | SLZ14 RUS | C304J | A9323 | FS11004PI1023 | AC9407C | JT493 |
| 01.14~03.16 | 2400 | G4KE | SL14 | C304J | A9323 | FS11004PI1023 | AC9312 | JT493 |
| 01.14~03.16 | 2400 | G4KJ | SL14 US | C304J | A9323 | FS11004 | AC9312 | JT493 |
