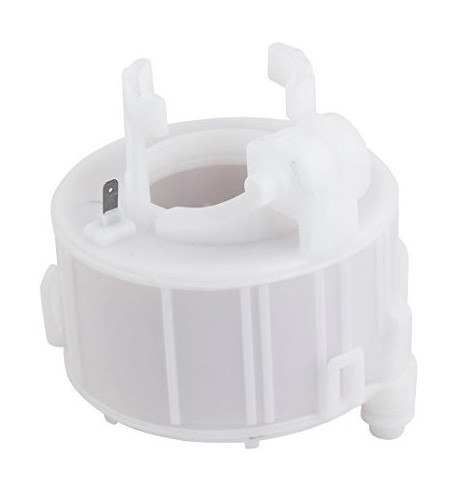

FUEL FILTER (IN-TANK) » FS11004

Feedback information
FS11004

Specification

Length 1/ Length 2
102
Outer Diameter 1/ Outer Diameter 2
95
Diameter 1/ Diameter 2 [mm]
10/10

Cross reference

HYUNDAI
31112-1R000
KIA
31112-1R000
KIA
31112-1R100
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Accent 11

10.10~10.14 1400 G4FA PSB11 SDN LHD C304J A9614 FS11004PI1023 AC9312 JT472K
10.10~10.14 1400 G4FA PSB11 SDN RHD C304J A9614 FS11004PI1023 AC9312 JT472K
11.11~09.14 1400 G4FA SB HB C304J A9614 FS11004PI1023 AC9312
09.11~05.14 1400 G4LC CT41 LHD C901J A9614 FS11004PI1023FR1015 AC9312 JT582
09.11~05.14 1400 G4LC CT41 RHD C901J A9614 FS11004PI1023 AC9312 JT582
09.11~05.14 1600 G4FC PSB11 HB C304J A9614 FS11004PI1023 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 HB LHD PR C304J A9614 FS11004PI1023 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 SDN C304J A9614 FS11004PI1023 AC9312 JT472K

HYUNDAI   »   Atos

10.18~05.22 1100 G4HG PC419 C901J   FS11004 AC304J JT199K

HYUNDAI   »   Eon

10.11~09.18 800 G3HA PIA 11 C901J A0644 FS11004PI1023 AC9311
10.11~09.18 800 G3HA PIA 11 RHD IND C901J A0644 FS11004PI1023 AC9311
11.13~09.18 1000 G3LA B9 C901J A0588 FS11004 AC9311

HYUNDAI   »   Genesis Coupe

03.12~12.16 2000 G4KF DK12 US C304J A0558 FS11004 AC9312 JT657

HYUNDAI   »   Grand I10

08.19~01.23 1000 G3LA PHQ20 RHD HB C901J A0588 FS11004 AC304J JT472K
09.13~01.17 1200 G4LA PB414 LHD GRAND HB C901J A0588 FS11004 AC9311 JT472K
09.13~01.17 1200 G4LA PB414 RHD GRAND SDN C901J A0588 FS11004 AC9311 JT472K
08.19~01.23 1200 G4LA PHQ20 LHD HB C901J A0588 FS11004 AC304J JT472K
01.23~ 1200 G4LA PHQ23 LHD SDN C901J A0588 FS11004 AC304J
01.23~ 1200 G4LA PHQ23 RHD HB C901J A0588 FS11004 AC304J JT472K

HYUNDAI   »   Grand Santa FE

09.12~05.16 3300 G6DF PB813 LHD LONG 7P OE9306 A0552 FS11004 AC9324 JT11001
01.13~10.18 3300 G6DF PB813 LHD PR OE9306 A0552 FS11004 AC9324 JT11001

HYUNDAI   »   i10

01.17~01.20 1000 G3LA PB417 RHD GRAND C901J A0588 FS11004 AC9311 JT472K
11.16~09.19 1000 G3LA PB917 EU C901J   FS11004 AC9311
01.14~ 1000 G3LA VTN C901J A0588 FS11004 AC9311
08.19~ 1000 G3LD PGQ20 EU LHD C901J A9335 FS11004 AC304J
09.13~01.17 1200 G4LA B9 C901J A0588 FS11004 AC9311 JT472K
09.13~01.17 1200 G4LA PB414 LHD GRAND SDN C901J A0588 FS11004 AC9311 JT472K
09.13~01.17 1200 G4LA PB414 RHD GRAND HB C901J A0588 FS11004 AC9311
09.13~01.17 1200 G4LA PB414 RHD HB C901J A0588 FS11004 AC9311 JT472K
01.17~10.20 1200 G4LA PB417 RHD GRAND HB C901J A0588 FS11004 AC9311 JT472K
01.17~10.20 1200 G4LA PB417 RHD GRAND SDN C901J A0588 FS11004 AC9311 JT472K
09.16~12.19 1200 G4LA PB917 C901J A0588 FS11004 AC9311 JT472K
01.14~ 1200 G4LA VTN C901J A0588 FS11004 AC9311 JT472K
08.19~ 1200 G4LF PGQ20 C304J A9335 FS11004 AC304J

HYUNDAI   »   iX 35

01.14~06.15 1600 G4FD TMZ10 LHD C307J A9323 FS11004 AC9407C JT493
08.09~09.13 2000 G4KD TMZ10 RUS C304JC307J A9323 FS9219FS11004PI1023 AC9407C JT493
07.13~06.15 2000 G4NA TMZ14 RUS C304J A9323 FS11004 AC9407C JT493

HYUNDAI   »   Santa FE

08.15~01.19 2400 G4KE PDM15 LHD C307J A0552 FS11004PI1023 AC9324 JT493
08.15~01.19 2400 G4KE PDM15 RHD C304J A0552 FS11004PI1023 AC9324 JT493

HYUNDAI   »   Santa FE 12

05.12~07.15 2400 G4KE DM LHD C304JC307J A0552 FS11004PI1023 AC9324 JT493
05.12~07.15 2400 G4KE DM RHD C304J A0552 FS11004PI1023 AC9324 JT493
05.12~07.15 2400 G4KJ PDM12 C307J A0552 FS11004 AC9324 JT493
05.12~07.15 3300 G6DF PDM12 OE9306 A0552 FS11004 AC9324 JT11001

HYUNDAI   »   Santro

09.18~05.22 1100 G4HG AH2 C901J   FS11004 AC304J

HYUNDAI   »   Solaris 11

03.11~05.14 1400 G4FA SBR11 RUS C304J A9614 FS11004 AC9328
11.10~05.14 1600 G4FC SBR11 RUS C304J A9614 FS11004 AC9312 JT472K

HYUNDAI   »   Solaris 14

05.14~12.16 1400 G4FA SBR14  RUS C304J A9614 FS11004 AC9328
05.14~12.16 1600 G4FC SBR14  RUS C304J A9614 FS11004 AC9328

HYUNDAI   »   Sonata 10

09.09~06.14 2000 G4KH PGFA10 US C304J A9422 FS11004FS9320 AC9324 JT11001
09.09~07.12 2400 G4KJ PGFA10 US C304J A9422 FS11004FS9320 AC9324 JT493

HYUNDAI   »   Tucson 10

11.09~08.13 2000 G4KD TM10 RHD C304J A9323 FS9219FS11004PI1023 AC9312 JT493JT11001

HYUNDAI   »   Tucson 14

08.13~06.15 2000 G4NA PTM14 LHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~05.15 2000 G4NA PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 LHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KJ PTM14 US C304J A9323 FS11004 AC9312 JT493

HYUNDAI (BEIJING)   »   iX 35

12.20~06.23 2000 G4NJ TL OE0160 A9634 FS11004 AC9413 JT581

HYUNDAI (BEIJING)   »   Sonata

03.15~03.17 2000 G4NA LF C304J A9625 FS11004 AC0243 JT493
03.17~07.20 2000 G4NA LF C304J A9625 FS11004 AC0243 JT732

KIA   »   IH 12

01.12~ 1400 G4FA IHS4D1617 C304J A9614 FS11004PI1023FR1015 AC9312

KIA   »   Pegas

01.18~ 1400 G4LC PH718 LHD C901J A9319 FS11004PI1023 AC9312 JT472K
01.18~ 1400 G4LC PH718 RHD C901J A9319 FS11004PI1023 AC9312 JT472K

KIA   »   Rio 12

03.11~05.15 1200 G4LA DN511 5DR HB RHD C901J A13001 FS11004PI1023FR1015 AC9312
03.11~05.15 1200 G4LA PIH12 4DR SDN RHD C901J A13001 FS11004PI1023 AC9312
07.11~02.15 1400 G4FA DXR12 RUS C304J A9614 FS11004PI1023FR1015 AC9328 JT472K
01.11~01.14 1400 G4FA PIH12 3DR HB C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 4DR SDN LHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 4DR SDN RHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 5DR HB LHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 5DR HB RHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
07.11~02.15 1600 G4FC DXR12 C304J A9614 FS11004PI1023FR1015 AC9328

KIA   »   Rio 15

01.15~06.17 1400 G4FA DXR15 RUS C304J A9614 FS11004 AC9328 JT472K
01.15~06.17 1600 G4FC DXR15 HB C304J A9614 FS11004 AC9328
01.15~06.17 1600 G4FC DXR15 SDN RU C304J A9614 FS11004 AC9328

KIA   »   Soluto

01.18~ 1400 G4LC PH718 RHD C901J A9319 FS11004PI1023 AC9312

KIA   »   Sorento 12

07.12~08.14 2400 G4KE XM12 C307J A0552 FS11004 AC9401 JT493
07.12~08.14 2400 G4KJ XM C307J A0552 FS11004 AC9401 JT493
07.12~08.14 3500 G6DC XM12 OE9306 A0552 FS11004 AC9401 JT11001

KIA   »   Sportage

06.10~04.14 2000 G4KD SLZ10 LHD C307J A9323 FS11004 AC9407C JT493

KIA   »   Sportage 14

01.14~03.16 2000 G4NA PSL14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
01.14~03.16 2000 G4NA SLZ14 C304J A9323 FS11004PI1023 AC9407C JT493
01.14~03.16 2400 G4KE SL14 C304J A9323 FS11004PI1023 AC9312 JT493
01.14~03.16 2400 G4KJ SL14 US C304J A9323 FS11004 AC9312 JT493

KIA   »   Stonic

09.20~ 1400 G4LC AU19 C901J A9319 FS11004 AC9312 JT581

KIA (DYK)   »   Sportage ACE

11.20~05.23 2000 G4NJ NP OE0160 A9634 FS11004 AC9413 JT581
